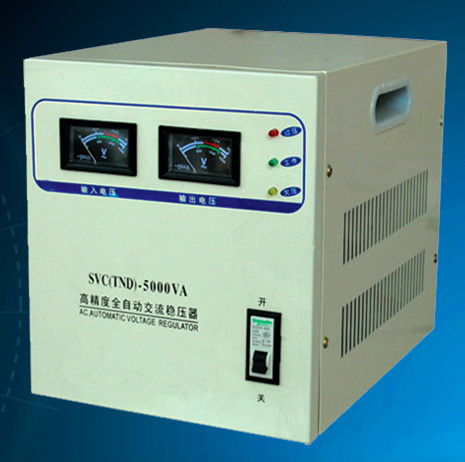

SVC/TND系列单相高精度全自动交流稳压器

产品名称：SVC/TND系列单相高精度全自动交流稳压器
所属类别：电气配件Electric Parts > 低压电器Low Voltage Products

产品详情

Detailed Description

Type Outline(cm) Weight(Kg) Qty/CTN

L W H

SVC-D500VA 18.5 15 12.5 17 4PCS

SVC-D1000VA 21 18 14.5 20 4PCS

SVC-D1500VA 21 18 14.5 25 4PCS

SVC-D2000VA 27.5 23.5 18.5 7.8 1PC

SVC-D3000VA 29 23 22 9.8 1PC

SVC-D5000VA 45 24 18.5 14 1PC

SVC-D7500VA 47 26 22 19.5 1PC

SVC-D10000VA 47 26 22 24.5 1PC

SVC-D15000VA 42 38 73 35 1PC

SVC-D20000VA 42 38 73 68.5 1PC

SVC-D30000VA 42 38 83 80 1PC

SVC-D5000VA 28 30 46 19 1PC (Cabinet)

SVC-D10000VA 44 32 56 31 1PC (Cabinet)

Type	Outline(cm)	Weight(Kg)	Qty/CTN
L	W	H
SVC-D500VA	18.5	15	12.5	17	4PCS
SVC-D1000VA	21	18	14.5	20	4PCS
SVC-D1500VA	21	18	14.5	25	4PCS
SVC-D2000VA	27.5	23.5	18.5	7.8	1PC
SVC-D3000VA	29	23	22	9.8	1PC
SVC-D5000VA	45	24	18.5	14	1PC
SVC-D7500VA	47	26	22	19.5	1PC
SVC-D10000VA	47	26	22	24.5	1PC
SVC-D15000VA	42	38	73	35	1PC
SVC-D20000VA	42	38	73	68.5	1PC
SVC-D30000VA	42	38	83	80	1PC
SVC-D5000VA	28	30	46	19	1PC (Cabinet)
SVC-D10000VA	44	32	56	31	1PC (Cabinet)

Application

SVC(LED) automatic voltage stabilizer consists of contact voltage regulator,sampling control cir-cuit and servomotor as well.It has excellent features,such as small waveform distortion,highefficiency,high power factor,free from the effect or frequency variation of supply.It can bewidely used in most situations where the voltage stabilization is required.

Specification

Input voltage 150V-250V

Output voltage 220V±3%, 110V±3%

Frequency 50H/60Hz

Response time <1sec.(against 10% input voltage deviation)

Efficiency >90%

Ambient temperature -10oC~±40oC

Relative humidity <90%

Waveform distortion Non-lack fidelity waveform

Power factor cos 0.8

Insutalion resistance >5MΩ

Input voltage	150V-250V
Output voltage	220V±3%, 110V±3%
Frequency	50H/60Hz
Response time	<1sec.(against 10% input voltage deviation)
Efficiency	>90%
Ambient temperature	-10oC~±40oC
Relative humidity	<90%
Waveform distortion	Non-lack fidelity waveform
Power factor cos	0.8
Insutalion resistance	>5MΩ
